Particulate Matter Sensors Module Price FS00210
- Dual-ear design, screw fixation, wiring connection.
- Detect mass concentration of PM2.5、PM10、PM1.0
- High Accuracy & Rapid Response
- ＞40000 Hours (Continuous working time)
- Fully shielded design, anti-static interference
- The minimum resolution particle size is 0.3 micrometers
- Reliable service for sustainable cooperation
Particulate Matter Sensor FS00210 Introduction
The FS00210 particulate matter sensor is a digital universal dust concentration sensor used to obtain the mass concentration (μg/m³) of suspended particles in the air, including PM1.0, PM2.5, and PM10, as well as the number of particles of 0.3, 0.5, 1.0, 2.5, 5.0, and 10um per unit volume. The laser dust sensor outputs data in a digital interface format. This particle matter sensor can be embedded in various instruments or environmental improvement equipment related to the concentration of suspended particles in the air, providing timely and accurate concentration data.
Working Principle Of Particulate Matter PM Sensor
The laser particle sensor uses the principle of laser scattering, which involves directing a laser beam onto suspended particles in the air to produce scattering, and then collecting the scattered light at a specific angle. The resulting curve of scattered light intensity changing over time is analyzed by a microprocessor using an algorithm based on MIE theory to determine the equivalent particle size and the number of particles of different sizes per unit volume of air.
The Video Of Laser Particle Sensor
Air Particulate Sensor FS00210 Features
1.The minimum resolution particle size is 0.3 micrometers
The high sensitivity and quick response can detect minimum size of particle is down to 0.3 micrometers.
2.Fully shielded design, anti-static interference
High stability, high accuracy, longer service life, reliable adaptability, wide application areas.
3.Long service life, accurate and stable data
Lifetime: The service life is up to 40000 hours (Continues work)
4.Compact and portable
The sensor has a thickness of only 12mm, making it very compact and portable.
Laser Dust Sensor FS00210 Specifications
Parameter type | Parameter index | |
Detection Type | PM2.5, PM10, and PM1.0 mass concentration (μg/m³) | |
| The number of particles of 0.3, 0.5, 1.0, 2.5, 5.0, and 10um per unit volume | |
Detection Range | 0~1000μg/m³ (Extendable) | |
Detection Accuracy | Min Solution | 1μg/m³ |
| Data Accuracy | 0~100μg/m³: ±10μg/m³ |
|
| 101~1000μg/m³: ±10%reading |
| Batch Consistency | ≥90% |
Operation Voltage | DC 5V±0.1V | |
Operation Current | ≤100mA (@5V power supply) | |
Standby Current | ≤200μA (@5V power supply) | |
Stable Time | ≤8s | |
Detection Frequency | The data is updated once per second (Default) | |
Output Methods | Default Output | UART (3.3V_TTL Voltage level) |
| Reserve | IIC、DAC、PWM (Default Off) |
Service Life | ＞40000 hours (Continuous operation) | |
Reference Dimension | 47.8×36.8×12.0 mm | |
Operation Temperature | -10℃～50℃ | |
Operation Humidity | 0～99%RH (Non-Condensation) | |
Storage Temperature | -30℃～ 60℃ | |
Storage Humidity | 0～99%RH (Non-Condensation) | |

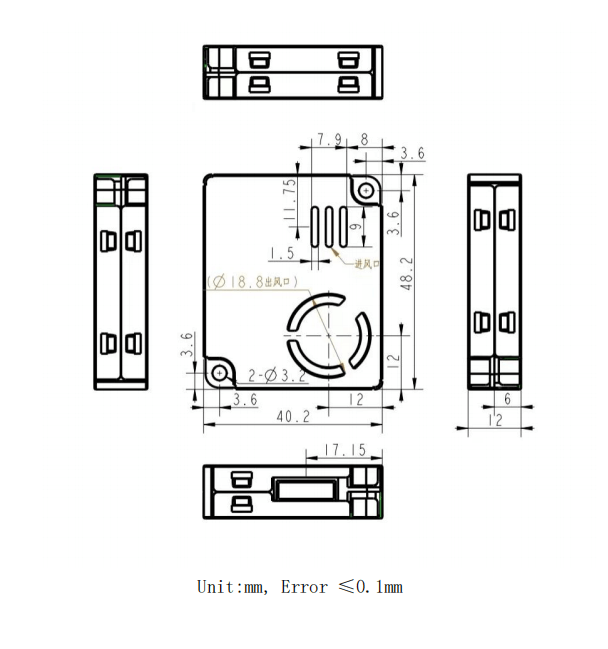

The Structure Of Best Particulate Matter Sensor In Fosensor Factory

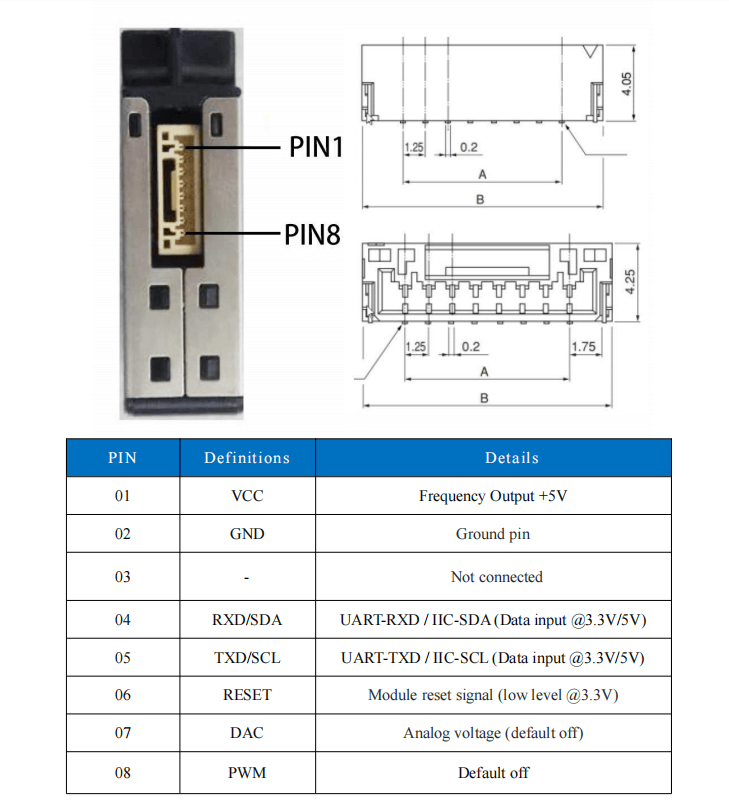

How To Define PIN Of PM2 5 Air Quality Sensor

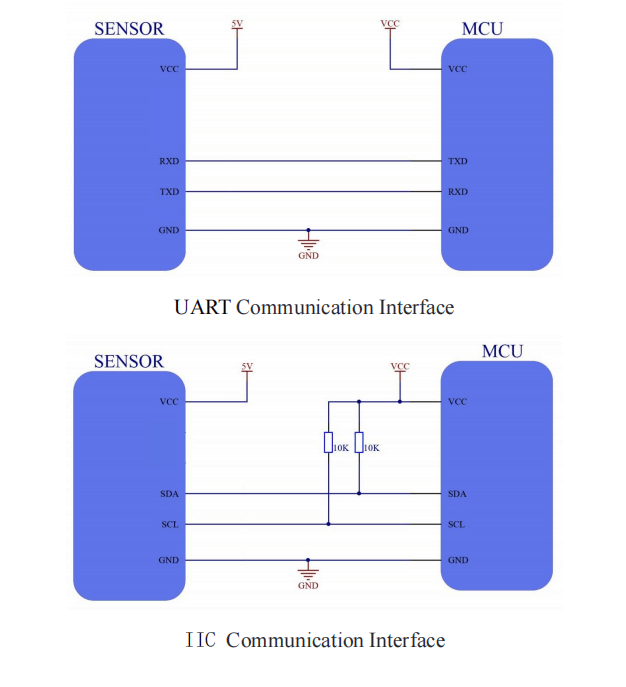

Recommended Wiring Diagram
Application Of Air Particulate Sensor
1.The sensor is suitable for use in air quality monitoring equipment, portable instruments, and air purifiers.
2.The sensor can also be used in fresh air ventilation systems, air conditioning units, and smart home devices.
3.Dust monitoring sensor can be used in various public places such as hospitals, hotels, and schools for air quality monitoring and control purposes.
