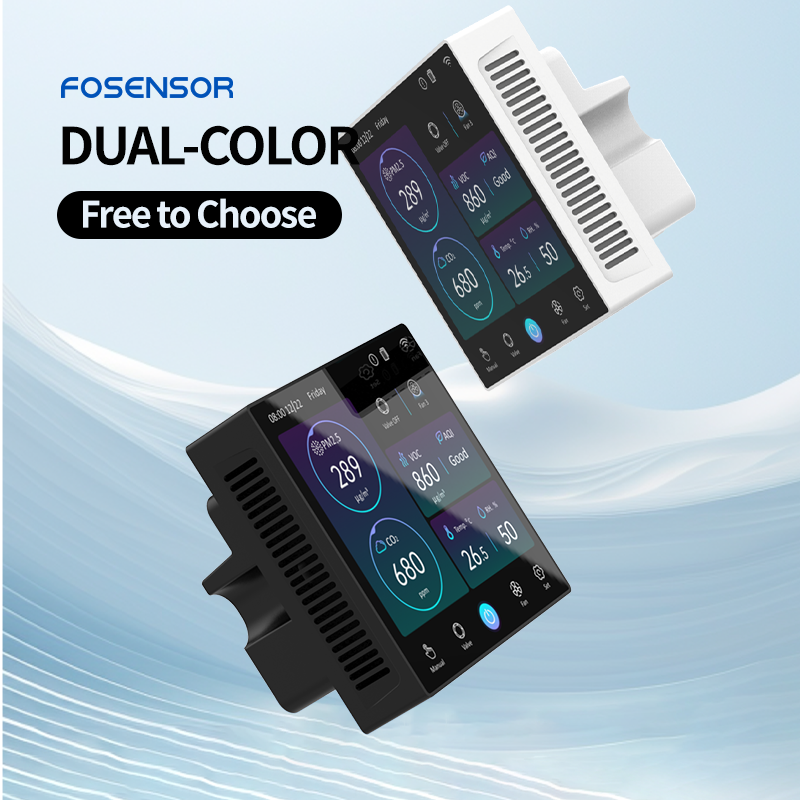

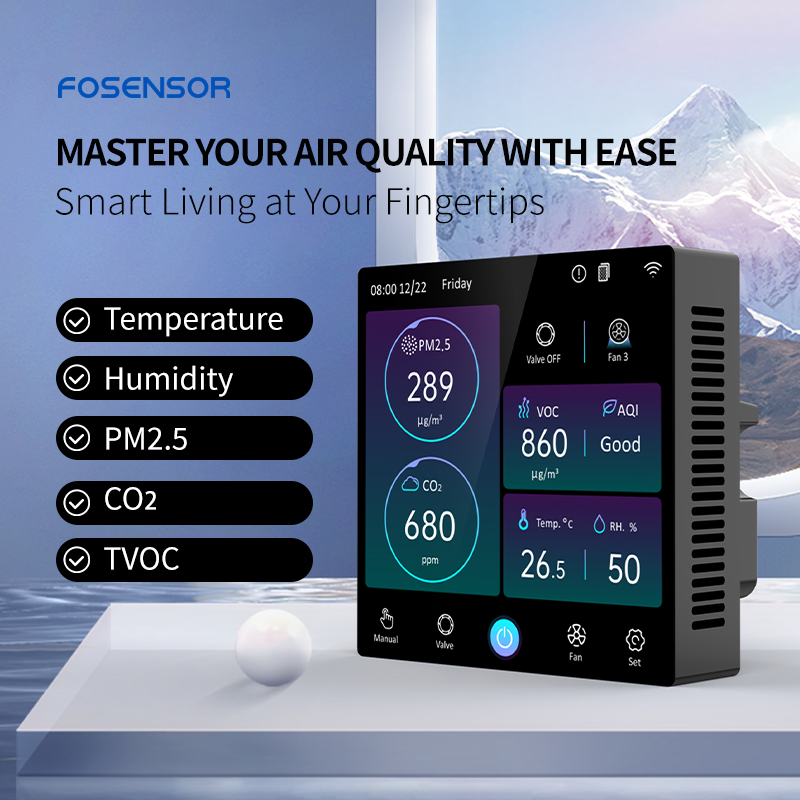

FS11007AC Smart Air Controller/Ventilation system fresh air controller
- 4-inch high-definition color screen
- Support RS485/WIFI, Tuya APP remote control
- Used for HAVC
- High-performance Sensor
- Can test temperature, humidity, pm2.5, carbon dioxide, tvoc.
- Real time monitoring air quality
Introduction Of Smart Air Controller FS11007AC
The Smart Air Controller FS11007AC is an integrated Class 6 environmental sensor (measuring temperature, humidity, PM2.5, CO₂, TVOC, and particulate matter) and an intelligent air quality detection and fresh air system linkage controller. It supports RS485/WIFI communication and the Modbus RTU protocol. The product features a built-in three-speed fan control interface, enabling real-time coordination with fresh air systems to adjust fan speed. It is suitable for smart buildings, public spaces, and industrial environments.
FS11007AC Details Of Ventilation System Fresh Air Controller
Features Of New Air Intellegent Controller Price
- Covers multi-field detection and comprehensively masters air quality
- Detects co2 in new houses for a more reassuring move-in
- Applied by a professional air quality monitoring organization
- Air quality index for office spaces
- Detects air quality in cars
- High quality and accurancy for resolution.
- Three levels of fan speedcan be switched freely
- 4-inch high-definition color screen
Specifications Of Home Air meter
| Testing item | HCHO, TVOC, Temperature, humidity, pm2.5, co2 |
| Testing principle | Gas Sensor |
| Display screen | 2.8-inch LCD with 3 touch buttons |
| Product size | 86X86X22.8mm |
| Installation Method | Wall-mounted |
| Operating Voltage AC version: | 110-220V |
| Control Power | ≤200W (fan load) |
| Output Interface | 3-speed fan (F1/F2/F3), damper (V1/V2) |
| Standby Power | ≤3.0W |
| Preheating Time | 3 min |
| Output Method | RS485/WIFI |
| Operating Temperature | -10°C to 50°C |
| Storage humidity | 0–99%RH (non-condensing) |
| Communication protocol | Modbus RTU |
Applications Of Home Air Smart Controller
People often use them in indoor places, such as home, house, school, hospital and so on.
- Covers multi-field detection and comprehensively masters air quality.
- Detects formaldehyde in new houses for a more reassuring move-in.
- Applied by a professional air quality monitoring organization.
- Air quality index for office spaces.
- Detects air quality in cars.
